BMC Kaius 01 TWO SRAM Force XPLR AXS (2027)

ENQUIRE

$12,999.00

Enquire RENT WITH STUDIO19
Special Order from Supplier.
Please allow an additional 2-5 business days.
Due to dealer agreement we are unable to ship this bike/frame.

Description

Contact us in store for more information on availability and pricing!

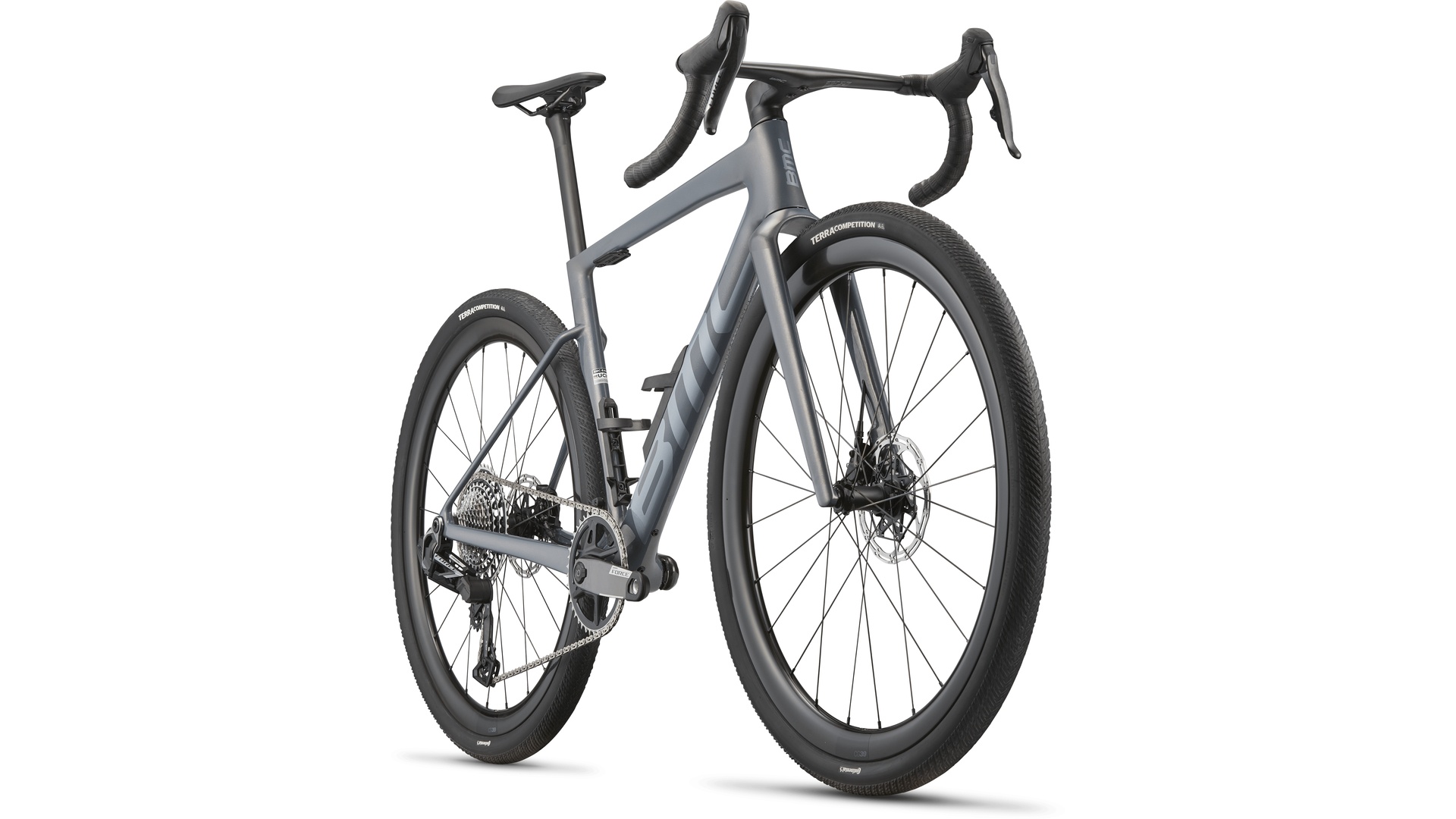

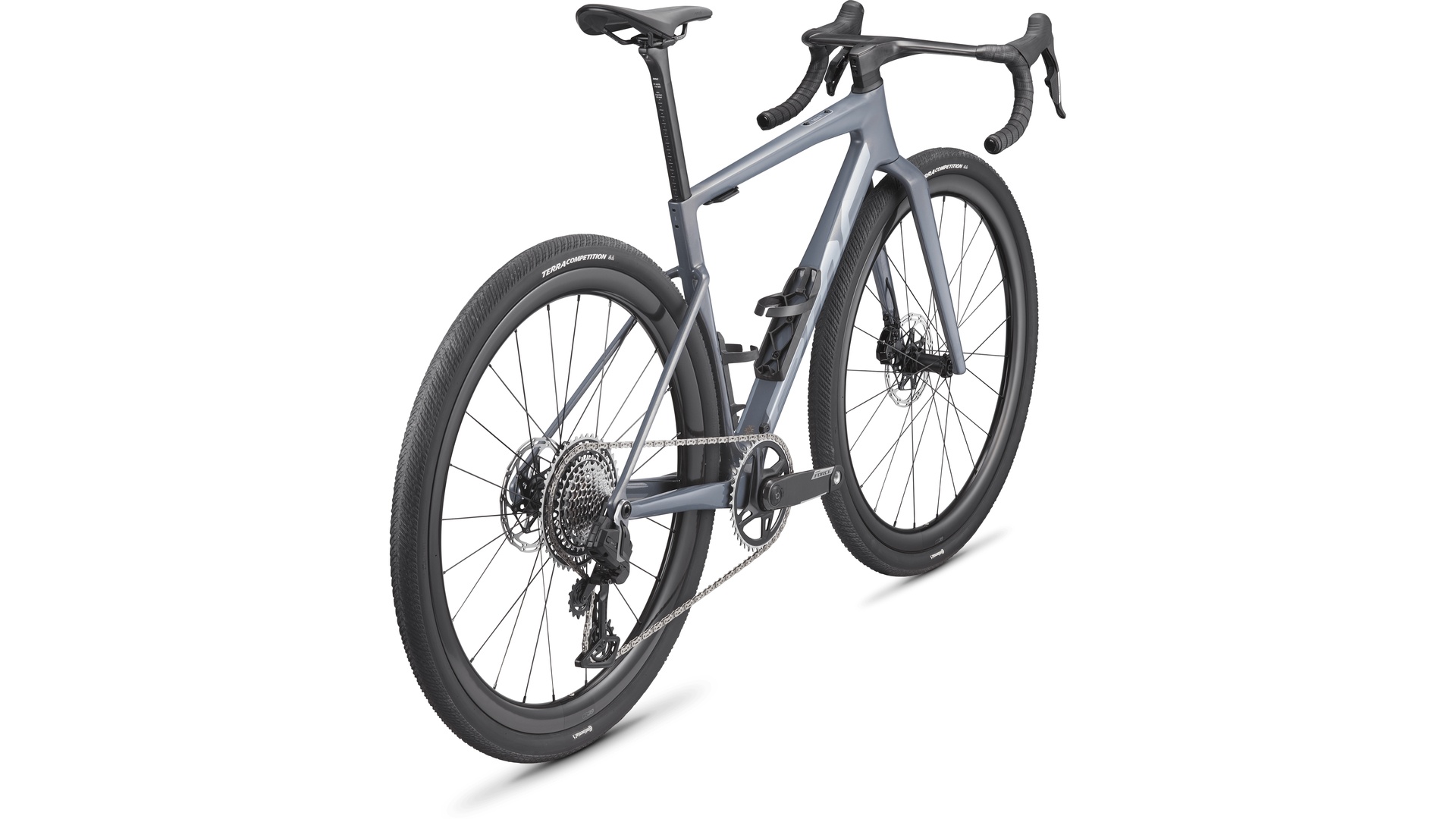

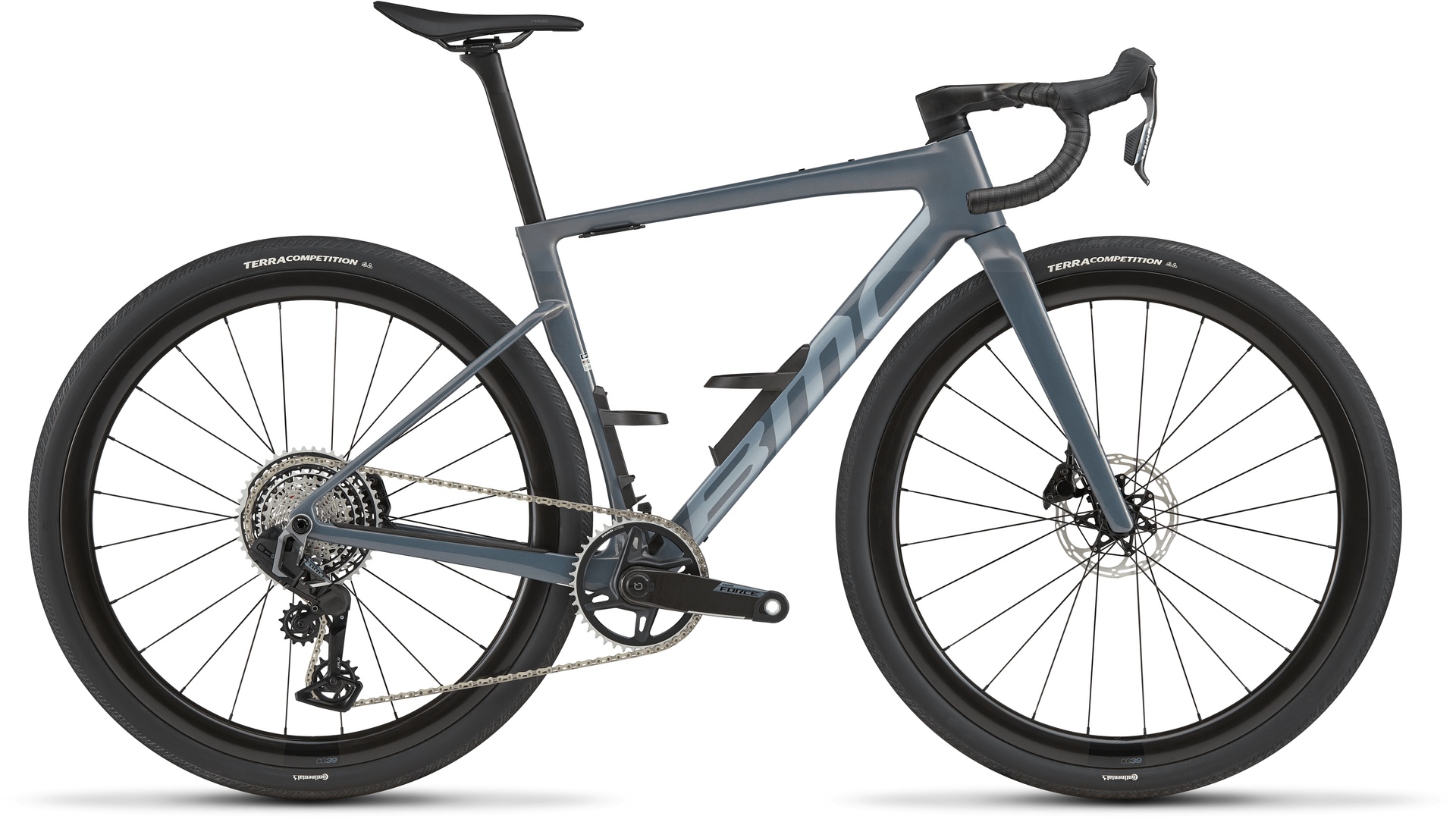

Lets take a look at the BMC Kaius 01 TWO SRAM Force XPLR AXS (2027)

Race-focused gravel speed, tuned for long days, high averages, and good times at every race.

Designed from the start for racing, the Kaius 01 TWO builds on the standard that our Kaius first set for speed on loose ground, bringing more stability, more efficiency, and more confidence at pace.
Aerodynamics are refined through Impec Lab development, leading to a 7% improvement at 40 km/h. The 01 Premium Carbon frame sharpens power transfer while increasing composure over broken ground. Added compliance, 51mm tire clearance and high-speed stability have all been reworked so you can rip the turns and stay aggressive when the racing gets selective.
Finished with SRAM Force XPLR AXS groupset with full-mount rear derailleur and power meter, it’s a gravel bike ready for race stress. The next-gen ICS Carbon Aero cockpit supports your race position up front, while our CG39 Carbon tubeless-ready wheelset keeps speed high as you glide over the chunky stuff with ease.

Designed for the evolving demands of elite gravel racing, the Kaius 01 offers up to 52mm tire clearance while maintaining race geometry and control. Enhanced compliance technologies and refined geometry ensure riders stay fast, stable, and efficient across the roughest terrain.

With integrated cargo solutions, drivetrain versatility, and cutting-edge frame design inspired by BMC’s Teammachine series, the bike is purpose-built for modern gravel competition.

Please note: Images are for illustrative purposes only, actual specification may differ.

Frame Specs
  • Sizes | 47, 51, 54, 56
  • Colors | Copper Grey
  • Frame | Kaius 01 Gen 2 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
  • Fork | Kaius 01 Gen 2 | 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Components
  • Handlebar | ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
  • Seatpost | Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
  • Saddle | Fizik Vento Argo X3 | Kium rails | 140mm
  • Pedals | Not Included
Drivetrain
  • Shifters | SRAM Force AXS (ED-FRC-E1)
  • Rear Derailleur | SRAM Force XPLR AXS (RD-FRC-1E-E1)
  • Brake Levers | SRAM Force AXS (ED-FRC-E1)
  • Cassette | SRAM Force XPLR (CS-XG-1371-E1) 10-46T
  • Chain | SRAM Force (CN-FRC-E1)
  • Crankset | SRAM Force AXS Wide (FC-FRC-1WP-E1)
  • Bottom Bracket | SRAM DUB T47 85.5 Road Wide Bottom Bracket (BB-DUB-T47-A1)
Wheels
  • Rims | CG 39 Carbon | Tubeless Ready | 39mm
  • Tyres | Continental Terra Competition Race Rapid | Tubeless | 45mm
Other
  • Extras | Power Meter: SRAM Force XPLR AXS Power Meter | Single Side (FC-FRC-1WP-E1) | Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount | Weight without Pedals: 7.8kg | Size 54 as pictured with all accessories | System Weight Limit: 120kg
Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 385 392 396 400 405 409
Stack 521 541 561 581 606 631
Bar Drop 135 135 135 135 135 135
Bar Reach 81 81 81 81 81 81
Bar Width 370/420 370/420 370/420 390/440 390/440 410/460
BB Drop 79 79 79 79 79 79
Crank Length 165 165 170 170 172.5 172.5
Fork Length 397 397 397 397 397 397
Fork Rake 50 50 50 45 45 45
Front Center 597 611 614 619 633 645
Head Tube 88 109 126 147 173 199
Head Tube Angle 70.8° 70.8° 70.8° 71.6° 71.6° 71.6°
Rear Center 425 425 425 425 425 425
Seat Angle 74.3° 74.3° 73.8° 73.8° 73.8° 73.8°
Seat Tube 429 449 471 485 509 533
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 0 0 10 10 10 10
Standover Height 739 758 779 795 815 838
Stem Angle -17° -17° -17° -17° -17° -17°
Stem Length 80 80 90 100 100 110
Top Tube 531 544 559 569 587 598
Trail 72 72 72 72 72 72
Wheelbase 1010 1024 1027 1032 1045 1058
