Description
The Basso Diamante Campagnolo Record 13 is Basso’s lightweight race bike built with Campagnolo Record 13 13-speed. The Basso Diamante is the bike that best sums up Basso. First launched 26 years ago and now in its eighth generation, it is a light, responsive race bike built for climbing and descending. It can be built right down to the UCI 6.8 kg weight limit. Questions about sizing or spec? Contact us and we’ll help you choose.
Basso Diamante Campagnolo Record 13 at a glance
- Frame: Basso Diamante Disc full carbon, round-tube design
- Groupset: Campagnolo Record 13 13-speed
- Gearing: 50-34 chainrings, 11-36 cassette
- Cockpit: Basso Levita integrated carbon bar and stem
- Sizes: 45, 48, 51, 53, 56, 58, 61
- Price: $14,999 depending on wheels
Campagnolo Record 13 brings 13-speed range and classic Italian craftsmanship to an Italian frame – a match made in the Veneto.
Why ride the Basso Diamante?
- Built for the hills – over 200 g lighter than before, with sharp, stable handling on fast descents
- Round-tube design – Basso’s circular tube shapes add torsional stiffness at the bottom bracket and head tube
- Refined race geometry – honed over eight generations and decades of racing
- Hand-finished carbon – a timeless, understated Italian look
Wheels
- Campagnolo Zonda Carbon – $14,999
Colours

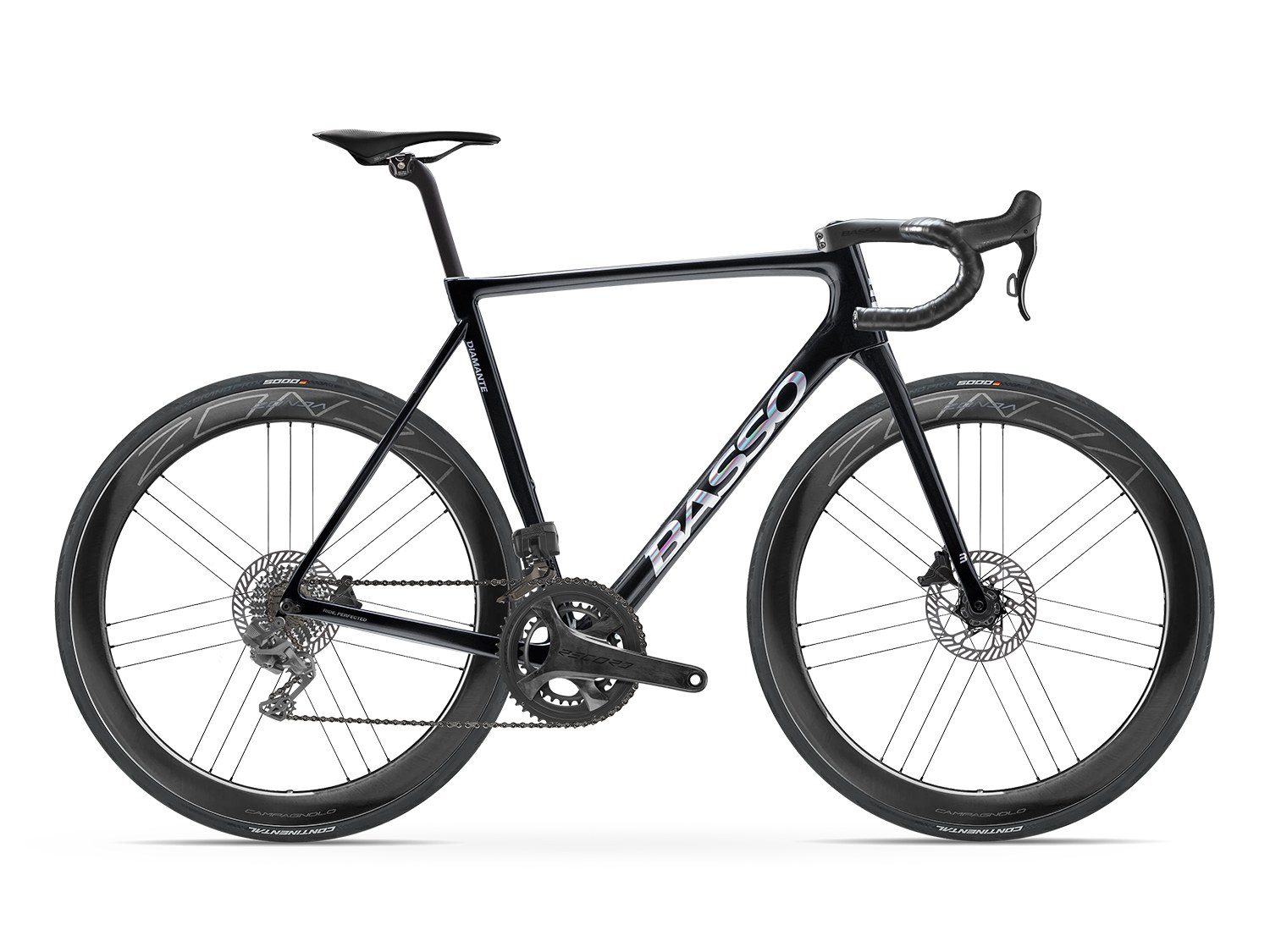

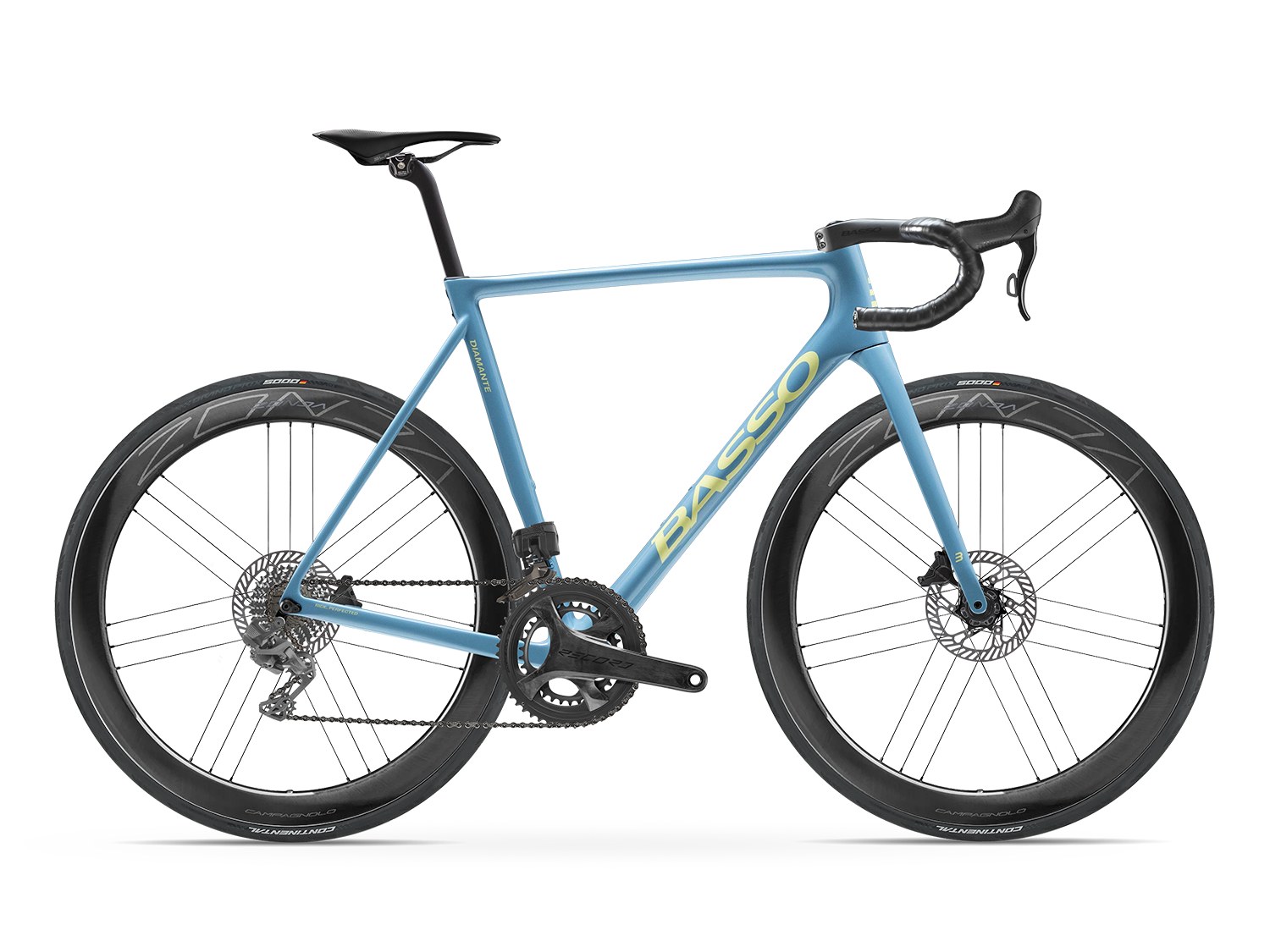

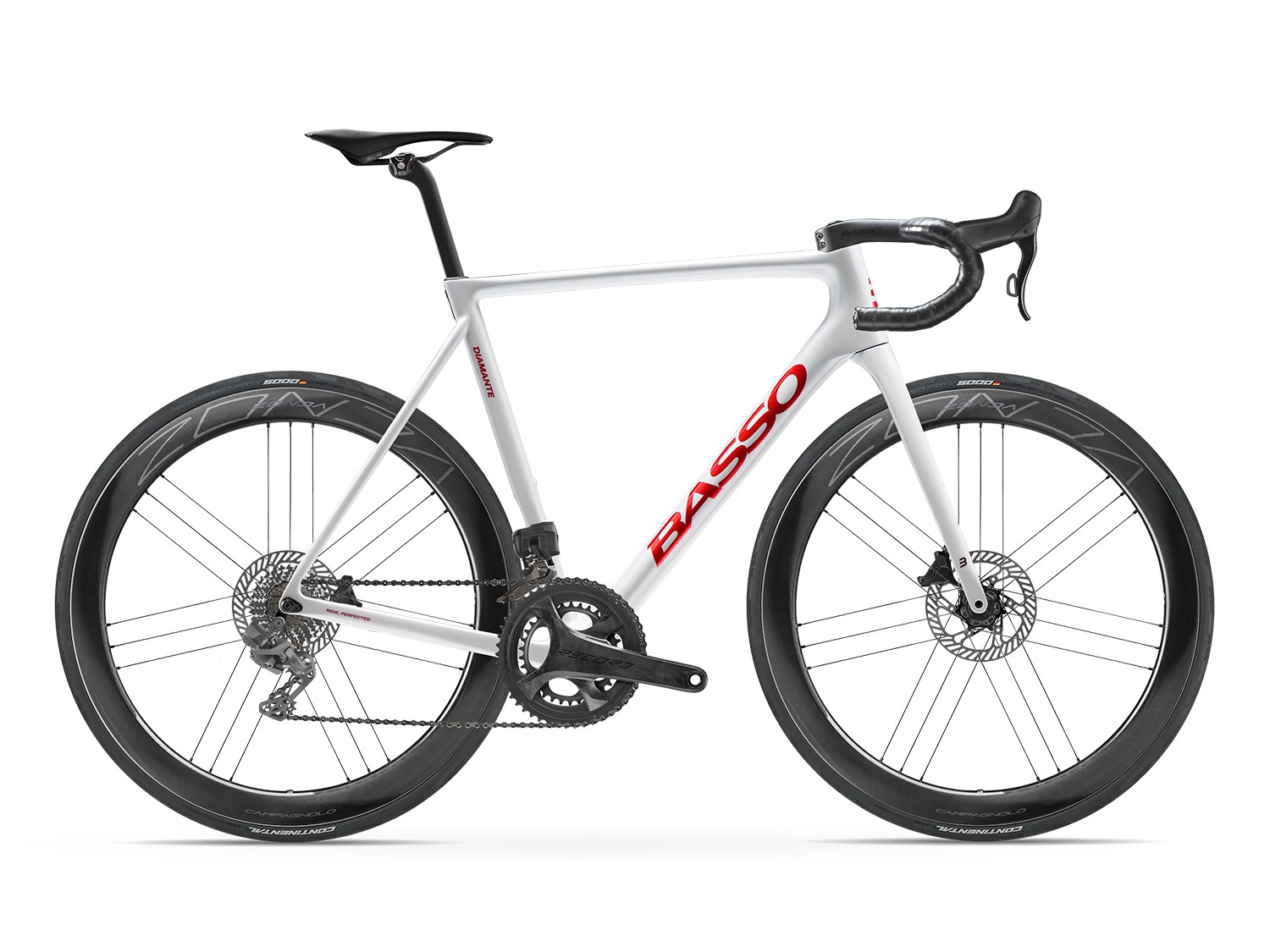

Available in White Fire, Prism and Pacific Lime. Tell us your colour when you enquire.
Built to order in Italy
Every Basso is built to order in Italy, then assembled and fitted in our Port Melbourne workshop. Lead times are usually 4–8 weeks, depending on the model. Every bike includes our PMC Advantage fitting and follow-up service.
Compare other Diamante builds: Basso Diamante – SRAM Red AXS, Basso Diamante – Shimano Dura-Ace Di2, Basso Diamante – Shimano Ultegra Di2, or the Basso Diamante frameset. Browse all Basso bikes or read more on the Basso website.
Helpful guide: Basso Bikes Melbourne: SV, Diamante, Astra & Palta III Guide
| 45 | 48 | 51 | 53 | 56 | 58 | 61 |
|---|
| Seat tube | 450 | 480 | 510 | 530 | 560 | 580 | 610 |
| Top tube (horizontal) | 505 | 515 | 525 | 545 | 560 | 575 | 590 |
| Reach | 374.9 | 375.2 | 378.6 | 384.8 | 386.9 | 389 | 390.7 |
| Stack | 521.7 | 521.8 | 546.2 | 558.8 | 584.3 | 608 | 632.2 |
| Seat tube angle | 76° | 75° | 75° | 74° | 73.5° | 73° | 72.5° |
| Head tube angle | 71.3° | 71.4° | 71.6° | 71.9° | 73.1° | 73.1° | 73.6° |
| Chainstay | 400 | 400 | 400 | 400 | 402 | 402 | 406 |
| Head tube | 101 | 101 | 126 | 138 | 155 | 180 | 203 |
| Handlebar width (c-c) | 400 | 400 | 420 | 420 | 420 | 420 | 440 |
| Stem length | 90 | 90 | 100 | 100 | 110 | 120 | 120 |
Measurements in mm unless stated. Not sure of your size? Contact us to book a sizing session in store.
